Web Inspection – WIS1000
Detect and classify defects in foil and web produced materials
Web Inspection – WIS1000

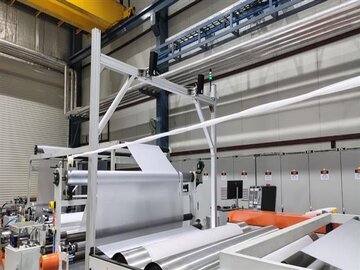

Our WIS1000 – system detects and classifies low contrast defects in plastic, paper, film, foil, non-woven materials, and many other substrates. It provides a high speed, total quality solution for most web produced materials.
Highly customizable and flexible, it is available for a wide range of applications and configurations. From technical materials to sensitive medical applications, it takes defect detection to new levels.
For all Defect Types
The system detects defects of all types: gels, holes, bubbles, contaminants, stains, coating inconsistencies, streaks – up to 32 defect categories can be distinguished.
These defects are automatically classified by type and size. New defect catgories can be defined and learned by the system in an easy workflow.
Gel Defects
Gel defects can occur in extruded plastic film materials and are indicative of faulty XY.
Insect Defects
Insect defects can occur in paper & pulp applications.
Fiber Defects
Fiber defects can occur in plastic webs, paper & pulp applications.
Multiple Defects
The system distinguishes multiple defect types simultaneously at high speeds.
HMI & Software
Your visual interface and control center.
Ease of use, functionality and productivity are at the center of our HMI. The interface is modular and freely configurable to best suit your requirements.
Monitor defects in realtime, classify and analyse defect distribution trends, and obtain structured reports! An intuitive system that makes defects visible.
Controlled via a 24″ touch panel or Panel PC, the high-performance system runs on an intel i7 Quad Core CPU.
Realtime Display
For realtime control, several parameters can be monitored, including:
- running map and live images
- histogram
- defect density alarms
and many more!
Reports & Analysis
Shows you all defects of an entire roll, including important data like defect types, size, density.
- roll summeries
- classification and analysis
- production campaign reports
and many more!
Defect definition
Easily define new defect categories – simple handling, fast machine learning and short training time for a fast and consequent defect classification.
Application:
- Hygiene Applications
- Food Packaging Films
- Plastic Films, Sheets, Webs
- Injection Moulded Parts
- Technical Applications
Product Features
- High precision measurement over complete lifetime:
Specialized electronics like power supply, sensors, amplifiers are engineered for precise measurement.
- Non-Radioactive
X-ray tube can be switched off. No radioactive isotope emitters
- Mechanical Structure
Heavy engineered frame to maximize precision of measurement across a variety of mechanical loads and temperature gradients.
- Range of Material
Because of simple calibration technique it is easy to calibrate across a variety of raw materials.
- No Cooling Required
Application:
- Medical Applications
- Hygiene Applications
- Food Packaging Films
- Plastic Films, Sheets, Webs
- Injection Moulded Parts
- Technical Applications
